Vector Ultrasonic Pen Marking VM1250 is a highly efficient precision dot peen marking machine for mass production. VM1250 is equipped with multi-stylus pen (having 4 styli) and can mark dots twice or faster than single pen models. VM1250 gives vibration priority to unworn and undamaged styli. The pneumatic system provides deep marking on your workpiece. It increases the efficiency of your work and thus lowers production costs. Though one or more styli are damaged, the machine can continue marking by remaining unworn styli. You can operate the machine with fewer styli without break until replacing damaged styli. Though unmarked workpieces are found, by operating the machine it again after replacing the damaged styli and specifying it for the control unit, characters will be marked on the correct space of workpiece. VM1250 can mark very neat letters with fine dots and smooth lines. Your investment on Vector Multi-stylus Pen Marking VM1250, will allow you to work with three kinds of 2D codes such as; DataMatrix / QR Code / Micro QR Code, Increment: 1~10 digits, calendar: Year. Month. Day. Hour. Minute. Second, circular arc marking, special character: Supported (16 types). Marked 2D Codes and characters on automobile parts such as engine, underbody, main body and frame will not disappear permanently. The 2D markings can also ensure the products you manufacture meet all the quality, safety and global regulations required. Vector Multi-stylus Pen Marking VM1250 Features: Economical for both mass production and one off barcode marking. 4 styli pen can mark dots twice or more faster than single pen models. All connectors, buttons and indicators are arranged on the front panel of control unit, it is very easy to install and maintain. Compact body size & wide marking range 2D code marking (DataMatrix / QR Code / Micro QR Code) Can be operated by both input panels and PC connectivity through USB port and PLC. Electric powered, highly efficient and environment friendly.
Vector Ultrasonic Pen Marking VM1250 is a highly efficient precision dot peen marking machine for mass production. VM1250 is equipped with multi-stylus pen (having 4 styli) and can mark dots twice or faster than single pen models. VM1250 gives vibration priority to unworn and undamaged styli. The pneumatic system provides deep marking on your workpiece. It increases the efficiency of your work and thus lowers production costs.
Though one or more styli are damaged, the machine can continue marking by remaining unworn styli. You can operate the machine with fewer styli without break until replacing damaged styli. Though unmarked workpieces are found, by operating the machine it again after replacing the damaged styli and specifying it for the control unit, characters will be marked on the correct space of workpiece. VM1250 can mark very neat letters with fine dots and smooth lines.
Your investment on Vector Multi-stylus Pen Marking VM1250, will allow you to work with three kinds of 2D codes such as; DataMatrix / QR Code / Micro QR Code, Increment: 1~10 digits, calendar: Year. Month. Day. Hour. Minute. Second, circular arc marking, special character: Supported (16 types). Marked 2D Codes and characters on automobile parts such as engine, underbody, main body and frame will not disappear permanently. The 2D markings can also ensure the products you manufacture meet all the quality, safety and global regulations required.
Vector Multi-stylus Pen Marking VM1250 Features:
- Economical for both mass production and one off barcode marking.
- 4 styli pen can mark dots twice or more faster than single pen models.
- All connectors, buttons and indicators are arranged on the front panel of control unit, it is very easy to install and maintain.
- Compact body size & wide marking range
- 2D code marking (DataMatrix / QR Code / Micro QR Code)

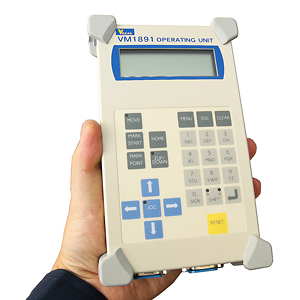

- Can be operated by both input panels and PC connectivity through USB port and PLC.
- Electric powered, highly efficient and environment friendly.
Overview
Customer value
Vector's Marking Machines and peripherals systems were all manufactured to conform with the strictest JIS standard and ISO14001:2004 on environmental certification. Your investment and reliability of using Vector machines will be protected with 1 year of limited warranty.
Built to last
Since 2002, Vector Co., Ltd. was established in Shizuoka after acquiring marking technology from Ando Electric Co., Ltd. Vector innovates comprehensive range of 2D marking machinery with pneumatic, electric and ultrasonic sound wave together with its PCD identer.
TECHNICAL SPECIFICATION
Vector Multi-stylus Pen Marking VM1250 Ordering Guide:
| Pen type | Multi-stylus pen (4 styli in a row) |
|---|---|
| Marking range | 80×30 mm |
| Pen stroke | Approx. 13mm (Z-axis marking range: 7mm) |
| Workpiece material | Steel, aluminum, copper and their alloys, stainless steel, hard plastic, etc. (depends on the type of stylus) |
| Available characters | Alphabet (uppercase/lowercase), number, symbol (18 types) |
| Character size | 4.34mm (MU0005-001 Multi-stylus Pen) 3.50mm (MU0004-001 Multi-stylus Pen) |
| Font | 1 type |
| Character orientation | 2 directions |
| Number of jobs | 255 jobs (J1~J255) |
| Number of sequences | 255 sequences (S1~S255) |
| String length | 1~36 characters (varied by character size) |
| Marking function | Increment: 1~10 digits Calendar: Year. Month. Day. Hour. Minute. Second Circular arc marking: Available Special character: Supported (16 types) 2D code: DataMatrix, QR Code, Micro QR Code |
| Interface | I/O(Parallel): 50pin, NPN/PNP connect RS-232C (Serial): 9pin USB (for operation by PC): USB 2.0 Standard-B |
| Power supply | Single-phase AC100V~230V 50 / 60 Hz, Approx. 200VA |
| Air supply | 0.3~0.5MPa, 130 L / min ( A.N.R.) Dry clean air (below atmospheric dew point -17℃) |
| Environmental condition | Operating temperature: 0~40 ℃ Storage temperature: -5 ~ +50 ℃ Relative humidity: 90%RH or less (no condensation) |
| Dimensions (W×H×D) | Mechanical Unit: 204×284×153mm Control Unit: 180×294×269mm |
| Weight | Mechanical Unit: Approx. 7.4kg Control Unit: Approx. 5.0kg |
