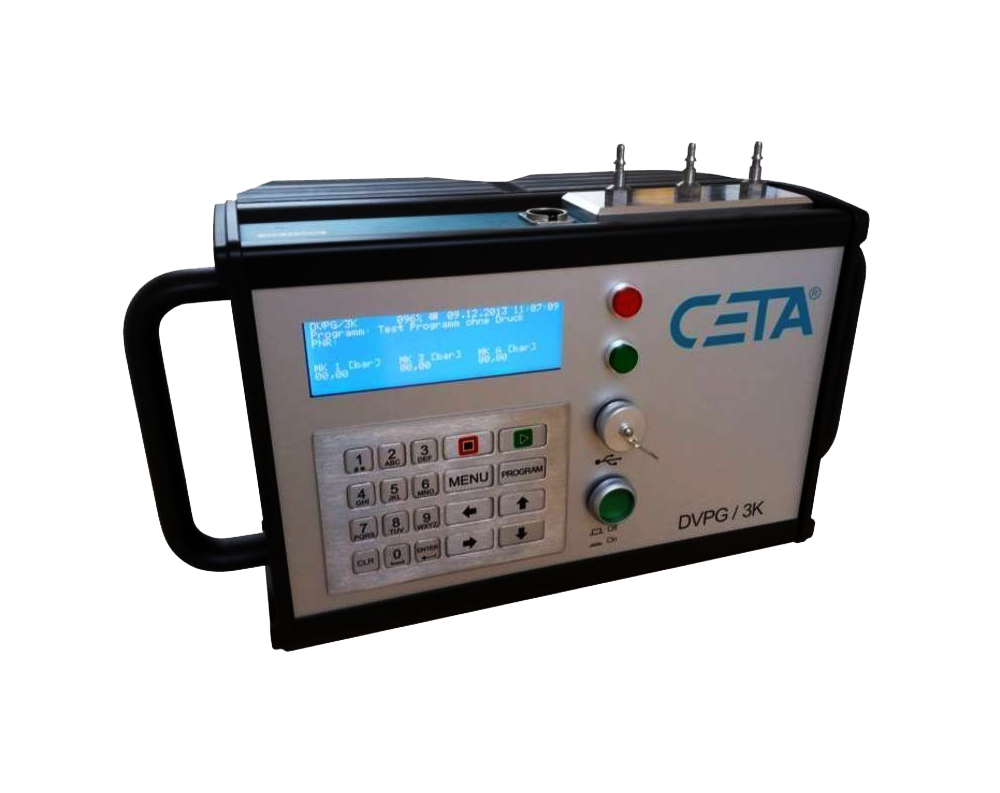

Pneumatic System Leak Tester DVPG 3K is an automatic working leak tester for the detection of leaking parts within the pneumatical circuit system on heavy duty vehicles and  pneumatical circuit in a workshop floor. This highly accurate leak pressure tester works on similar method with Leak Tester CETATEST 715, which compares the deviation value in the test part volume with the pressure in a tight reference volume (differential measure method). In order to evaluate the tightness, the instrument monitors the current pressure (incl. tolerances) and the limit values (measurement resolution: 0,01 bar) in each channel. A printer can also be connected via USB port, so that each test can be documented by an nspection label. All recorded data (test results and measuring curves) are automatically sorted in dated folders and can be exported for further analysis on spreadsheet via USB flash drive.

This convenient instrument is intended for leak testing of pneumatic circuits of motor vehicles, previously filled to the target pressure (usually 12 bar). Equipped with integrated UPS allows up to 8 hours of uninterrupted operation. In addition, special holding fixture to hang it from the vehicle frame, so that the instrument can be used everywhere which are also ideal for any aplication in fabrication line. The working pressure ranges from 0,00 to 20,00 bar. The test programs and system settings are provided and controlled by the software "DVPG Configurator“, and can be loaded to the test instrument simply by a USB flash drive. The leak-testing procedure of up to three circuits starts after entering the production number and connecting the measuring lines.

Your investment on Pneumatic System Leak Tester DVPG 3K, will allow you to conduct a much cheaper method in testing pneumatical circuit system such as air service brakes, parking brakes, a control pedal, and an air storage tank of coach bus, trucks, trains and mass rapid transit carriage for commercial passenger or goods transportation. Due to its three channeled circuits of leak testing capabilities on the whole compressed air system, Pressure Progress Test instrument DVPG 3K is highly regarded for many calibration lab, auto-parts maker, auto-workshop, and to test pneumatical workshop installaton as well.

Pneumatic System Leak Tester DVPG 3K Features:

• Leak testing of pneumatical circuits, which are pre-filled up to the target pressure.
• Piezo-resistive gauge pressure sensor
• Measurement range of 0.00 to 20.00 bar

• Unit of measurement is Bar with test modes based on pressure difference

• Can also be combined with mechanical pressure regulator and other set of pressure gauge as well.
• Integrated with rechargable battery unit for 8 hours of continuous testing
• Compact form factor of 450 mm x 270 mm x 220 mm (W x H x D)
• Pneumatic System Leak Tester DVPG 3K is highly optimized for quality control and maintenance of motor vehicles



To serve your interest on Pneumatic System Leak Tester DVPG 3K,

kindly contact our sales department.
