Eisen Pin Gauge Ceramic EC Series Set The EC series contains 51 pin gauges made from fine ceramics (zirconia) that have up to ±1.5μm tolerance for high precision measurements in micron units. Each standard size increases by 0.01 mm increments and all pin gauges are 58 HRC or harder. Custom sizes and combinations can also be made to meet unique customer needs. Sizes are indicated on the plastic cases for gauges up to 1.49 mm and are laser engraved on gauges 1.50 mm and larger. Benefits: For high-precision measurement: A package of pin gauges in different sizes range with ±1 μm tolerance. Easy to distinguish point of entry for checking bores, internal diameter and depth of pin and slots on countershaft and many more. Find out more about pin gauges by reading our article here. LFC is the authorized distributor for Eisen Pin Gauges in Singapore and Indonesia. If you are looking for a pin gauge or wish to find out more, feel free to contact us for a consultation.
Eisen Pin Gauge Ceramic EC Series Set

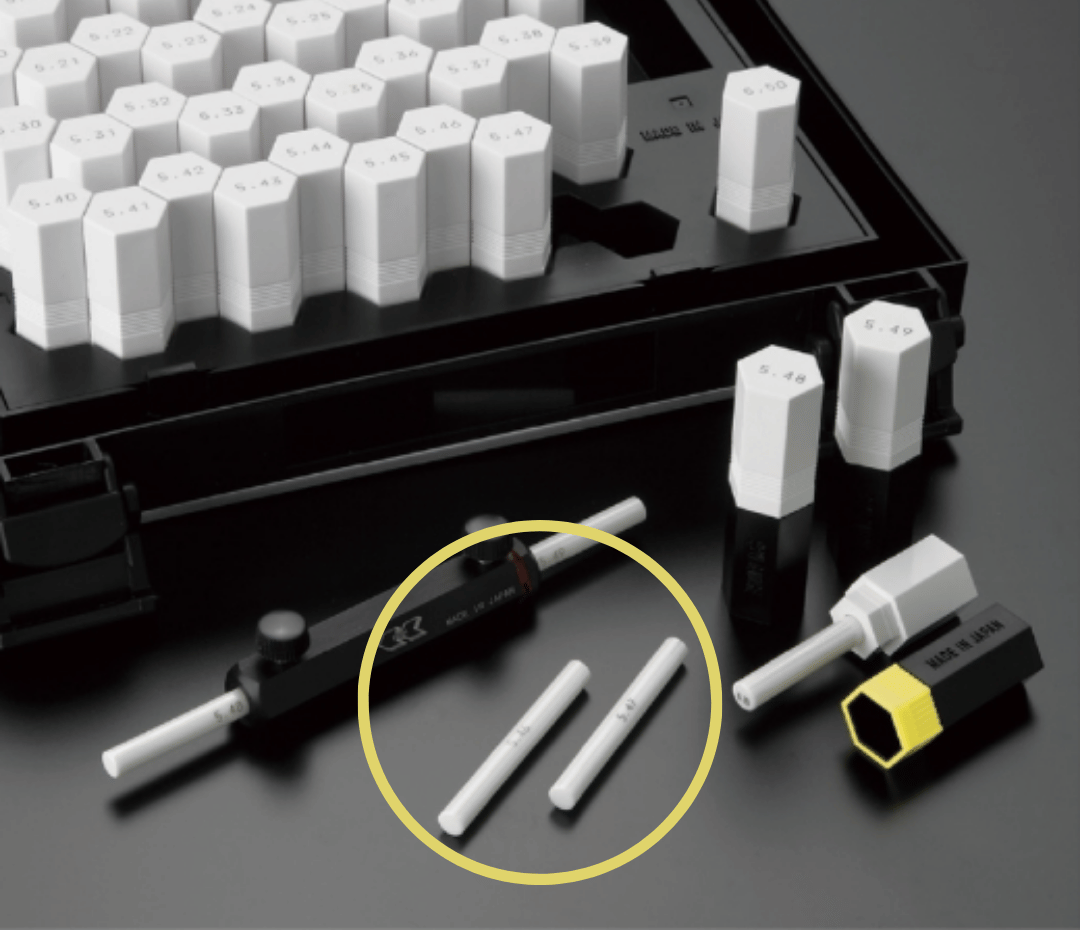

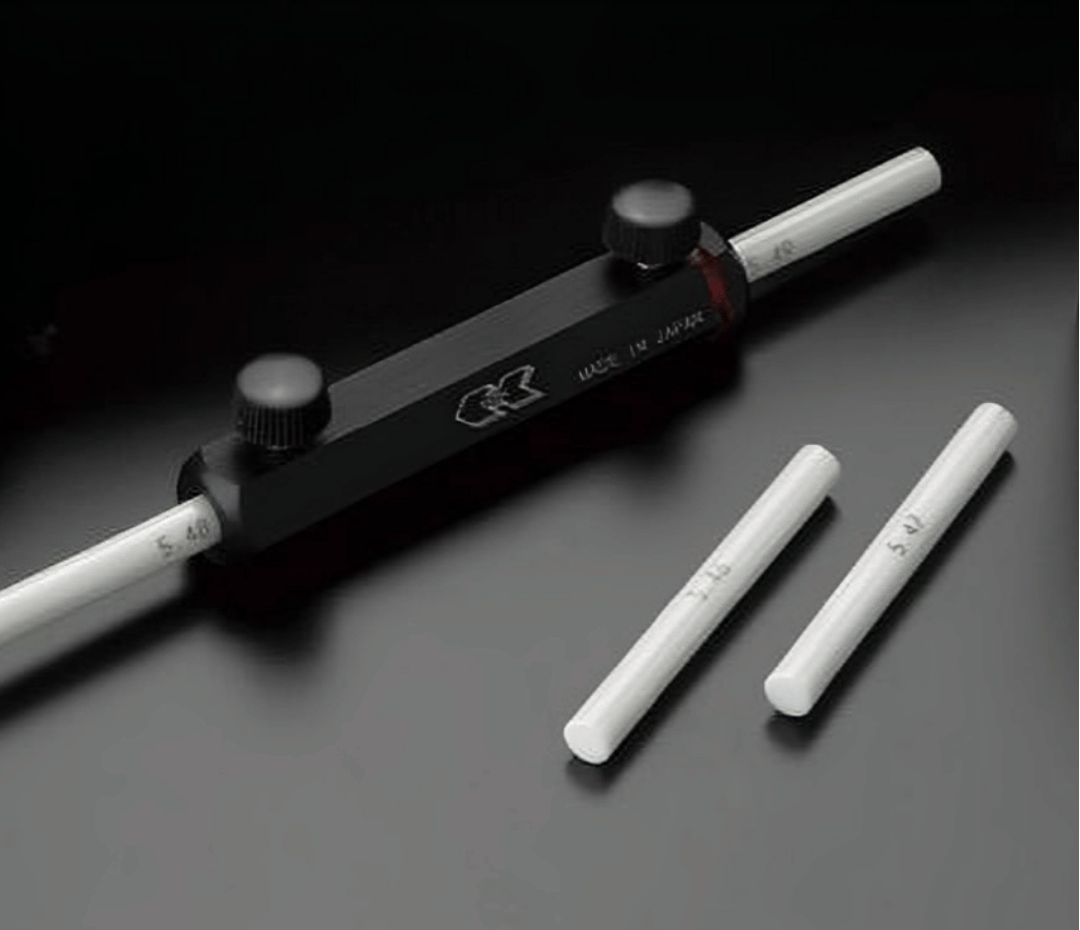

The EC series contains 51 pin gauges made from fine ceramics (zirconia) that have up to ±1.5μm tolerance for high precision measurements in micron units. Each standard size increases by 0.01 mm increments and all pin gauges are 58 HRC or harder. Custom sizes and combinations can also be made to meet unique customer needs. Sizes are indicated on the plastic cases for gauges up to 1.49 mm and are laser engraved on gauges 1.50 mm and larger.
Benefits:
- For high-precision measurement: A package of pin gauges in different sizes range with ±1 μm tolerance.
- Easy to distinguish point of entry for checking bores, internal diameter and depth of pin and slots on countershaft and many more.
Find out more about pin gauges by reading our article here.
LFC is the authorized distributor for Eisen Pin Gauges in Singapore and Indonesia. If you are looking for a pin gauge or wish to find out more, feel free to contact us for a consultation.
TECHNICAL SPECIFICATION
Eisen Pin Gauge EC Set Ordering Guide:
| Set Range (mm) | Length (mm) | Roundness | Tolerance |
| 0.20 ~ 1.49 | 40 | 0.8μm | ±1μm |
| 1.50 ~ 10.00 | 50 | 1.3μm | ±1μm |
| 10.01 ~ 20.00 | 50 | 1.3μm | ±1μm |
Eisen Pin Gauge EC Series With Complete Range Set Ordering Guide:
| Set No. | Step (mm) | Set Range (mm) | No. of Pins | Mass (kg) |
| EC-0A | 0.01mm | 0.20 0.21... 0.49 0.50 | 31 | 1 |
| EC-0B | 0.01mm | 0.50 0.51... 0.99 1.00 | 51 | 1 |
| EC-1A | 0.01mm | 1.00 1.01... 1.49 1.50 | 51 | 1 |
| EC-1B | 0.01mm | 1.50 1.51... 1.99 2.00 | 51 | 1 |
| EC-2A | 0.01mm | 2.00 2.01... 2.49 2.50 | 51 | 1.1 |
| EC-2B | 0.01mm | 2.50 2.51... 2.99 3.00 | 51 | 1.1 |
| EC-3A | 0.01mm | 3.00 3.01... 3.49 3.50 | 51 | 1.1 |
| EC-3B | 0.01mm | 3.50 3.51... 3.99 4.00 | 51 | 1.2 |
| EC-4A | 0.01mm | 4.00 4.01... 4.49 4.50 | 51 | 1.3 |
| EC-4B | 0.01mm | 4.50 4.51... 4.99 5.00 | 51 | 1.3 |
| EC-5A | 0.01mm | 5.00 5.01... 5.49 5.50 | 51 | 1.4 |
| EC-5B | 0.01mm | 5.50 5.51... 5.99 6.00 | 51 | 1.5 |
| EC-6A | 0.01mm | 6.00 6.01... 6.49 6.50 | 51 | 1.5 |
| EC-6B | 0.01mm | 6.50 6.51... 6.99 7.00 | 51 | 1.6 |
| EC-7A | 0.01mm | 7.00 7.01... 7.49 7.50 | 51 | 1.7 |
| EC-7B | 0.01mm | 7.50 7.51... 7.99 8.00 | 51 | 1.8 |
| EC-8A | 0.01mm | 8.00 8.01... 8.49 8.50 | 51 | 2 |
| EC-8B | 0.01mm | 8.50 8.51... 8.99 9.00 | 51 | 2.1 |
| EC-9A | 0.01mm | 9.00 9.01... 9.49 9.50 | 51 | 2.2 |
| EC-9B | 0.01mm | 9.50 9.51... 9.99 10.00 | 51 | 2.3 |
| EC-10A | 0.01mm | 10.00 10.01... 10.49 10.50 | 51 | 2.5 |
| EC-10B | 0.01mm | 10.50 10.51... 10.99 11.00 | 51 | 2.6 |
| EC-11A | 0.01mm | 11.00 11.01... 11.49 11.50 | 51 | 2.8 |
| EC-11B | 0.01mm | 11.50 11.51... 11.99 12.00 | 51 | 2.9 |
| EC-12A | 0.01mm | 12.00 12.01... 12.49 12.50 | 51 | 3.1 |
| EC-12B | 0.01mm | 12.50 12.51... 12.99 13.00 | 51 | 3.3 |
| EC-13A | 0.01mm | 13.00 13.01... 13.49 13.50 | 51 | 3.5 |
| EC-13B | 0.01mm | 13.50 13.51... 13.99 14.00 | 51 | 3.6 |
| EC-14A | 0.01mm | 14.00 14.01... 14.49 14.50 | 51 | 3.8 |
| EC-14B | 0.01mm | 14.50 14.51... 14.99 15.00 | 51 | 4 |
| EC-15A | 0.01mm | 15.00 15.01... 15.49 15.50 | 51 | 4.3 |
| EC-15B | 0.01mm | 15.50 15.51... 15.99 16.00 | 51 | 4.5 |
| EC-16A | 0.01mm | 16.00 16.01... 16.49 16.50 | 51 | 4.7 |
| EC-16B | 0.01mm | 16.50 16.51... 16.99 17.00 | 51 | 4.9 |
| EC-17A | 0.01mm | 17.00 17.01... 17.49 17.50 | 51 | 5.2 |
| EC-17B | 0.01mm | 17.50 17.51... 17.99 18.00 | 51 | 5.4 |
| EC-18A | 0.01mm | 18.00 18.01... 18.49 18.50 | 51 | 5.7 |
| EC-18B | 0.01mm | 18.50 18.51... 18.99 19.00 | 51 | 5.7 |
| EC-19A | 0.01mm | 19.00 19.01... 19.49 19.50 | 51 | 6.2 |
| EC-19B | 0.01mm | 19.50 19.51... 19.99 20.00 | 51 | 6.5 |
※Pin gauges also sold individually. Special sizes are also available.
