DeFelsko PosiTector 6000 FNDS3 is devised for testing multiple case of thickness on a surface with both ferrous (ex; zinc layer) and non ferrous (ex; acrylic paint layer) reading on a single screen. The fully electronic coating thickness gauges use both magnetic (ferrous) and eddy current (non ferrous) principles to measure coating thickness on layered ferrous and non-ferrous metals, accurately and simultaneously display the individual paint and zinc layer thicknesses. DeFelsko PosiTector 6000 includes an Advanced body and regular cabled FNDS probe for measuring the individual thicknesses of both the paint and the zinc layers in a duplex coating system with a single reading. this gage offer versatile application in testing the Duplex coating systems of two corrosion protection systems – typically paint or powder coating over galvanized steel (hot-dip, electro or zinc spray metallizing). The resultant corrosion protection is superior to either protection system used independently. welding, cladding or joint quality on boiler pipes, bending scrutiny, corrosion or decompossing of steel frames and many marine equipment fabrication. On each DeFelsko Positector unit, the main body display and lower body probes can be easily switched for multiple application. The maintenance of DeFelsko unit is practical, you can just simply order a new probes separately for cost effective benefits. This benefits also allows you to have the total scrutiny of non destructive testing package for both indoor or outdoor. If you are looking for advanced interconnectivity and robust application with smartphones, DeFelsko also inoovating the PosiTector Smartlink series with WIFI technology, smartphone software and handheld design. DeFelsko PosiTector 6000 features: Measures and displays the individual layer thicknesses of zinc and paint in a duplex coating system with a single reading Highly recommended for measuring the three types of zinc used in duplex coating systems - hot-dip, electro and zinc spray metallizing (thermal spray zinc) When taken out of duplex mode, the instrument can be used as a conventional ferrous/non-ferrous gage to measure the thickness of coatings on ferrous or non-ferrous metal substrates Scan mode - Take continuous readings without lifting the probe (Advanced models only) Ready to measure - no adjusment required for most applications with every stored measurement is date and time stamped. Enhanced one-handed menu navigation with flashing display - ideal in a noisy environment RESET feature instantly restores factory settings Solvent, acid, oil, water and dust resistant - weatherproof and wear-resistant probe tip with shock-absorbing, protective rubber holster Built-in temperature compensation ensures measurement accuracy Hi-RES mode increases displayed resolution for use on applications that require greater precision Conforms to national and international standards including ISO and ASTM PosiTector body accepts all PosiTector probes such as 6000. Thus, easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage [View Video] Multiple calibration adjustment options including 1 point, 2 point, known thickness, average zero Flip Display enables right-side-up viewing with extended cables available (up to 75 m/250 ft) for remote measuring Continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring USB port for fast, simple connection to a PC and to supply continuous power. USB cable included PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required Software updates via internet keep your gage current

DeFelsko PosiTector 6000 FNDS3 is devised for testing multiple case of thickness on a surface with both ferrous (ex; zinc layer) and non ferrous (ex; acrylic paint layer) reading on a single screen. The fully electronic coating thickness gauges use both magnetic (ferrous) and eddy current (non ferrous) principles to measure coating thickness on layered ferrous and non-ferrous metals, accurately and simultaneously display the individual paint and zinc layer thicknesses.

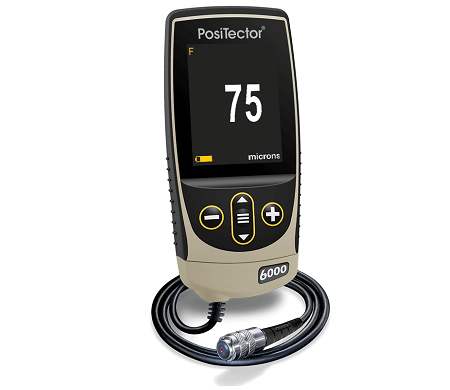

PosiTector 6000 FNDS

DeFelsko PosiTector 6000 includes an Advanced body and regular cabled FNDS probe for measuring the individual thicknesses of both the paint and the zinc layers in a duplex coating system with a single reading. this gage offer versatile application in testing the Duplex coating systems of two corrosion protection systems – typically paint or powder coating over galvanized steel (hot-dip, electro or zinc spray metallizing). The resultant corrosion protection is superior to either protection system used independently. welding, cladding or joint quality on boiler pipes, bending scrutiny, corrosion or decompossing of steel frames and many marine equipment fabrication.

On each DeFelsko Positector unit, the main body display and lower body probes can be easily switched for multiple application. The maintenance of DeFelsko unit is practical, you can just simply order a new probes separately for cost effective benefits. This benefits also allows you to have the total scrutiny of non destructive testing package for both indoor or outdoor. If you are looking for advanced interconnectivity and robust application with smartphones, DeFelsko also inoovating the PosiTector Smartlink series with WIFI technology, smartphone software and handheld design.

DeFelsko PosiTector 6000 features:

Measures and displays the individual layer thicknesses of zinc and paint in a duplex coating system with a single reading
Highly recommended for measuring the three types of zinc used in duplex coating systems - hot-dip, electro and zinc spray metallizing (thermal spray zinc)
When taken out of duplex mode, the instrument can be used as a conventional ferrous/non-ferrous gage to measure the thickness of coatings on ferrous or non-ferrous metal substrates
Scan mode - Take continuous readings without lifting the probe (Advanced models only)
Ready to measure - no adjusment required for most applications with every stored measurement is date and time stamped.
Enhanced one-handed menu navigation with flashing display - ideal in a noisy environment
RESET feature instantly restores factory settings
Solvent, acid, oil, water and dust resistant - weatherproof and wear-resistant probe tip with shock-absorbing, protective rubber holster
Built-in temperature compensation ensures measurement accuracy
Hi-RES mode increases displayed resolution for use on applications that require greater precision
Conforms to national and international standards including ISO and ASTM
PosiTector body accepts all PosiTector probes such as 6000. Thus, easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage [View Video]
Multiple calibration adjustment options including 1 point, 2 point, known thickness, average zero
Flip Display enables right-side-up viewing with extended cables available (up to 75 m/250 ft) for remote measuring
Continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required
Software updates via internet keep your gage current

TECHNICAL SPECIFICATION

DeFelsko PosiTector 6000 FNDS Specifications

DeFelsko Digital Multi Thickness Gauge PosiTector 6000 FNDS3 Comparison Chart:

Order Code (PosiTector Advanced gage body and FNDS probe)		FNDS1	FNDS3
General Features		Standard Body	Advanced Body
All features shown on Overview page		+	+
PosiTector body accepts all PosiTector 6000, 200, DPM, RTR, SPG and UTG,probes easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage		+	+
High contrast, reversible color LCD		+	+
FAST mode - faster measurement speed for quick inspection (feature not available in duplex mode)		+	+
SCAN mode - take continuous readings without lifting the probe			+
Hi-Lo alarm - audibly and visibly alerts when measurements exceed your specified limits (feature not available in duplex mode)		+	+
Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring		+	+
Real time graphing and batch notes			+
Two (2) Year Warranty on Body and Probe		+	+
Memory Features & Capacity		Standard	Advanced
Reading Storage Capacity		250 in one group	100,000 in up to 1000 groups
Screen Capture - record screen images for record keeping and review		+	+
Batch Annotation - Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen *QWERTY* keyboard.			+
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels (feature not available in duplex mode)			+
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings (feature not available in duplex mode)			+
Multiple stored cal adjustments for measuring on a variety of substrate conditions			+
Connection Options		Standard	Advanced
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included		+	+
	Wireless Technology for data transfer to a PC or optional portable printer		+
WiFi technology wirelessly communicates with PosiSoft.net, downloads software updates and provides access to the gages stored measurement data using a standard web browser.			+
PosiSoft Solutions - 4 ways to view and report your data		Standard	Advanced
PosiSoft Desktop Powerful desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data. No internet connection required.		+	+
PosiSoft USB Drive Simple gage interface to retrieve data in a manner similar to USB flash drives, cameras or digital audio players. No software to install or internet connection required.		+	+
PosiSoft.net Web-based application offering secure centralized management of PosiTector and PosiTest AT-A readings. Synchronize measurement data from your instrument and access it from anywhere in the world.		+	+
PosiTector App Mobile app connects PosiTector Advanced instruments to your iOS or Android smart device.			+

FNDS Probe on Duplex mode spec:


The magnetic principle is used to measure the combined paint/zinc thickness over the ferrous substrate, and the eddy current principle is used to measure the paint thickness over the non-ferrous zinc coating. The zinc thickness is calculated by subtracting the paint thickness from the combined paint/zinc thickness measurement.
Range:		0 - 60 mils 0 - 1500 um
	Minimum Zinc Thickness:	0.5 mil (13 um)
	*Paint Layer Accuracy:**	Mils	+ (0.05 mils + 1%) 0 - 2 mils + (0.1 mils + 1%) > 2 mils
		Microns	+ (1 um + 1%) 0 - 50 um + (2 um + 1%) > 50 um
	*Zinc Layer Accuracy:**	Mils	+ (0.1 mils + 1%) 0 - 2 mils + (0.2 mils + 1%) > 2 mils
		Microns	+ (2 um + 1%) 0 - 50 um + (4 um + 1%) > 50 um
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

DeFelsko PosiTector 6000 Selectable Probes & Application Guide:

Removable Built-in and Regular Separate probe models

90˚ Regular probe for tight spots

Ideal for anodized aluminium

Microprobes - Our smallest probes for small parts or hard-to-reach areas

Removable Built-in and Separate probes for thick protective coatings; epoxy, rubber, intumescent fireproofing and more

Ferrous Probes

Standard

FS1

FRS1

FOS1

F45S1

F90S1

FT1

FTS1

FHXS1

FKS1

FLS1

Advanced

FS3

FRS3

FOS3

F45S3

F90S3

FT3

FTS3

FHXS3

FKS3

FLS3

Non-Ferrous probes

Standard

NS1

NRS1

NAS1

NOS1

N45S1

N90S1

NKS1

Advanced

NS3

NRS3

NAS3

NOS3

N45S3

N90S3

NKS3

Combination Probes

Standard

FN1

FNS1

FNRS1

FNTS1

FNGS1

Advanced

FN3

FNS3

FNRS3

FNTS3

FNGS3

Range

0-60 mils

Ferrous: 0-45 mils and 0-1150µm

0-250 mils

0-400 mils

0-500 mils

0-1.5 inches

0-2.5 inches

0-1500µm

Non-Ferrous: 0-25 mils and 0-625µm

0-6 µm

0-10,000 µm

0-13 mm

0-38 mm

0-63.5 mm

Accuracy

±(0.05mil+1%) 0-2 mils

±(0.02mil+1%)

0-4 mils

±(0.05mil+1%)

0-100 mils

±(0.1mil+3%)

±(1mil+3%)

±(0.01in.+3%)

±(0.1mil+1%)>2mils

±(0.1mil+3%) >4mils

±(0.1mil+3%)>100mils

±(1µm+1%) 0-50µm

±(0.5µm+1%) 0-100µm

±(0.01mm+1%)

0-2.5mm

±(2µm+3%)

±(0.02mm+3%)

±(0.2mm+3%)

±(2µm+1%)>50µm

±(2µm+3%) >100µm

±(0.01mm+3%)>2.5mm

Matching DeFelsko calibration standard

STDS1

STDS2

STDP1

STDP7

STDP5

STDP8

STDP8 (included)

STDA1

STDA2

LFC does the hardwork of experimenting tools so that you can work smarter. To serve your interest on various DeFelsko solution, kindly contact our sales engineer

Other probes by DeFelsko for Positector 6000 body:

Probe Model	Substrates	Probe Style	Measuring Range
F	ferrous	removable built-in	0 - 60 mils (0 - 1500 um)
FS	ferrous	regular separate	0 - 60 mils (0 - 1500 um)
FRS	ferrous	90° regular separate	0 - 60 mils (0 - 1500 um)
F0S	ferrous	0° microprobe	0 - 45 mils (0 - 1150 um)
F45S	ferrous	45° microprobe	0 - 45 mils (0 - 1150 um)
F90S	ferrous	90° microprobe	0 - 45 mils (0 - 1150 um)
FT	ferrous	removable built-in	0 - 250 mils (0 - 6 mm)
FTS	ferrous	high-range separate	0 - 250 mils (0 - 6 mm)
FKS	ferrous	high-range separate	0 - 500 mils (0 - 13 mm)
FHXS Extreme ^TM	ferrous	high-range separate	0 - 400 mils (0 - 10000 um)
FLS	ferrous	high-range separate	0 - 1.5 inches (0 - 38 mm)
N	non-ferrous	removable built-in	0 - 60 mils (0 - 1500 um)
NS	non-ferrous	regular separate	0 - 60 mils (0 - 1500 um)
NRS	non-ferrous	90° regular separate	0 - 60 mils (0 - 1500 um)
NAS	non-ferrous	regular separate	0 - 25 mils (0 - 625 um)
N0S	non-ferrous	0° microprobe	0 - 25 mils (0 - 625 um)
N45S	non-ferrous	45° microprobe	0 - 25 mils (0 - 625 um)
N90S	non-ferrous	90° microprobe	0 - 25 mils (0 - 625 um)
NKS	non-ferrous	high-range separate	0 - 500 mils (0 - 13 mm)
FN	ferrous / non-ferrous combo	removable built-in	0 - 60 mils (0 - 1500 um)
FNS	ferrous / non-ferrous combo	regular separate	0 - 60 mils (0 - 1500 um)
FNRS	ferrous / non-ferrous combo	90° regular separate	0 - 60 mils (0 - 1500 um)
FNTS	ferrous / non-ferrous combo	high-range separate	0 - 250 mils (0 - 6 mm)
FNGS	ferrous / non-ferrous	high-range separate	0 - 2.5 inches (0 - 63.5 mm)
