If you want to find out more about

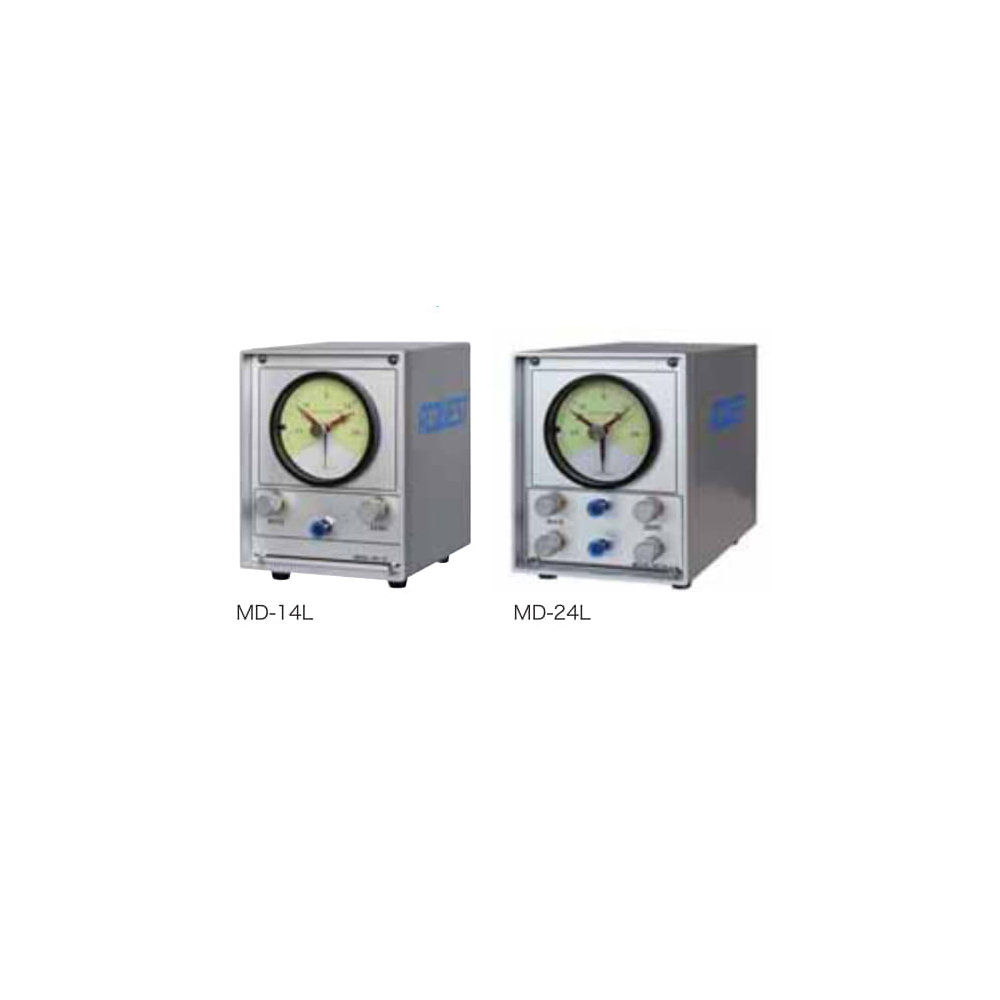

Acquest Dial Dimensional Air Gauge MD Series
Talk to us at :
(65) 6749 9697
sales@lfc.com.sg
Acquest Dial Dimensional Air Gauge MD is devised as a relative measuring instrument that can measure the dimensions of a piece of work using flow of compressed air at 0.4 MPa (megapascal). You can easily tweak your measurement simply by plugging different type of air probes. Back pressure which is amplified in proportion to a small clearance is indicated on the dial display. Unique adjustment functions allow for accurate magnification adjustment over a wide range. High pressure air blows off dust,oil to ensure accurate measurement and quick response. Unlike column type display which is not practical for multi-probing, Acquest Dial Air gauge MD Series can also be combined with several type of air probe sensor for crosschecking results on various workpiece and testing sequence. Acquest Dial Air gauge MD Series are intended to measure the precision work of piece such as combustion chamber, turbine, flanges, valve and many other system which need delicate measurement without direct contact on the surface. The highly versatile Acquest air gauge micrometer is the ideal investment for quality measurements on the production floor as they offer highly versatile measurement for both pass/fail test and precision comparison. Acquest Digital Air gauge DAG2000 Features : The high pressure air type allows for a wide clearance between the measuring probe and object,hence offers a wide measuring range and prolongs the probe life. The precision regulator and amplifier relay assures accurate measurement,stable indication,and very quick response. Magnification can be adjusted over a wide range,and anydesired measuring range can be obtained simply by changing the scale board. Several models of different magnifi cations,from low to high,are available. The dual indicator has two pointers(black and red),facilitating the correlation of dimensions of two parts to be seen easily.
Acquest Dial Dimensional Air Gauge MD is devised as a relative measuring instrument that can measure the dimensions of a piece of work using flow of compressed air at 0.4 MPa (megapascal). You can easily tweak your measurement simply by plugging different type of air probes. Back pressure which is amplified in proportion to a small clearance is indicated on the dial display. Unique adjustment functions allow for accurate magnification adjustment over a wide range. High pressure air blows off dust,oil to ensure accurate measurement and quick response. Unlike column type display which is not practical for multi-probing, Acquest Dial Air gauge MD Series can also be combined with several type of air probe sensor for crosschecking results on various workpiece and testing sequence.
Acquest Dial Air gauge MD Series are intended to measure the precision work of piece such as combustion chamber, turbine, flanges, valve and many other system which need delicate measurement without direct contact on the surface. The highly versatile Acquest air gauge micrometer is the ideal investment for quality measurements on the production floor as they offer highly versatile measurement for both pass/fail test and precision comparison.
Acquest Digital Air gauge DAG2000 Features :
- The high pressure air type allows for a wide clearance between the measuring probe and object,hence offers a wide measuring range and prolongs the probe life.
- The precision regulator and amplifier relay assures accurate measurement,stable indication,and very quick response.
- Magnification can be adjusted over a wide range,and anydesired measuring range can be obtained simply by changing the scale board.
- Several models of different magnifi cations,from low to high,are available.
- The dual indicator has two pointers(black and red),facilitating the correlation of dimensions of two parts to be seen easily.
TECHNICAL SPECIFICATION
Acquest Dial Dimensional Air Gauge MD Series Ordering Guide:
